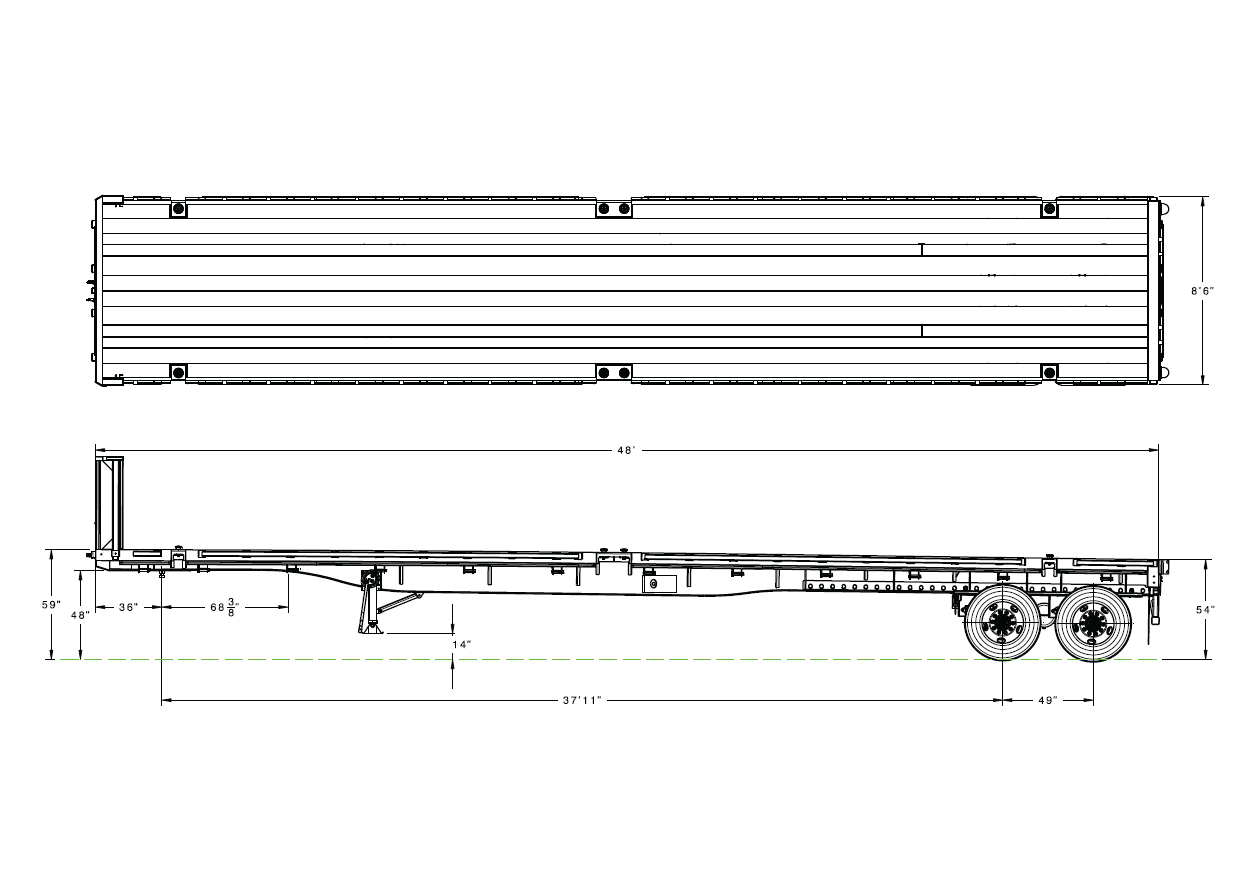

00635930

Parameters of Product

Flatbed Trailer

Model Number

00635930

Model Type

Regular

Capacity

40 Ton

Overall Length

576-inch

Overall Height w/Front Header

Overall Width

102-inch

5th Wheel Height

48-inch

Rear Deck Height

54-inch

Front Deck Height

59-inch

King Pin Setting

36-inch

Swing Clearance

68 ⅜-inch

Axle Spacing

49-inch

No. of Axles

Main Beam Center

44-inch

Axle Track

Cross Members

4-inch Jr. I-Beams on 12-inch Centers

Main Frame

Side Rails

Structural Steel Channel

Rear Cross Member

Stake Pockets

YES

Axles

25000 lbs

King Pin 5th Wheel

2-inch Heavy Duty

Tires

11R X 22.5

Wheels

Brakes

16 ½-inch X 7-inch - 25K

ABS

2S1M

Landing Gear

2-Speed Landing Gear

Suspension

2-Speed Landing Gear, Air Ride Sliding Suspension

Lighting

LED Plus 2 - Rear Strobes

Connector

7 way SAE connector

Tie Downs

Winches and Webbings

YES

Container Locks

Twist locks: 2 for 20’ Container, or 1 for 40’ container.

Front Header

Head Rack Removable

Decking

Apitong Flooring

Finish

Sandblast & Powder Coat
