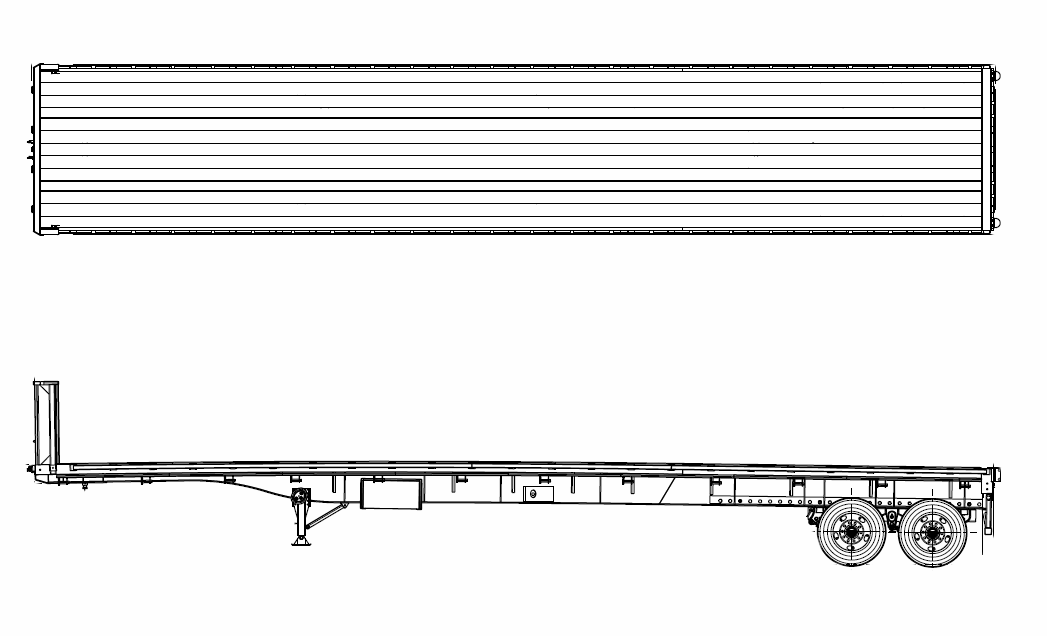

GTFF202-48

Parameters of Product

Flatbed Trailer

Model Number

GTFF202-48

Model Type

Regular

Capacity

20 Ton

Overall Length

576-inch

Overall Height w/Front Header

109-inch

Overall Width

102-inch

5th Wheel Height

48-inch

Rear Deck Height

59-inch

Front Deck Height

59-inch

King Pin Setting

30-inch

Swing Clearance

128-inch

Axle Spacing

49-inch

No. of Axles

Main Beam Center

44-inch

Axle Track

77.5-inch

Cross Members

4-inch Jr. I-Beams on 8-inch Centers

Main Frame

Fabricated I-Beam

Side Rails

6-inch Structural Channel

Rear Cross Member

Structural channel full width with rubber dock bumpers

Stake Pockets

YES

Axles

25000 lbs

King Pin 5th Wheel

2-inch Heavy Duty

Tires

11R X 22.5 H

Wheels

Brakes

16 ½-inch X 7 Full Air Brakes

ABS

2S1M

Landing Gear

17-inch Travel, 2-Speed Landing Gear with 10-inch x 10-inch sand shoes

Suspension

Spring Ride Sliding Suspension

Lighting

Lighting LED in Rubber Grommet

Connector

7 way SAE connector

Tie Downs

Winches and Webbings

YES

Container Locks

Front Header

Head Rack Fixed

Decking

Apitong Flooring

Finish

White Primed and Powder Coated Black

Options

1. Wide Turn Indicators, 2. Head Rack Fixed, 3. Hubometer, 4. Tool Box.
