GTFF402-53
Parameters of Product

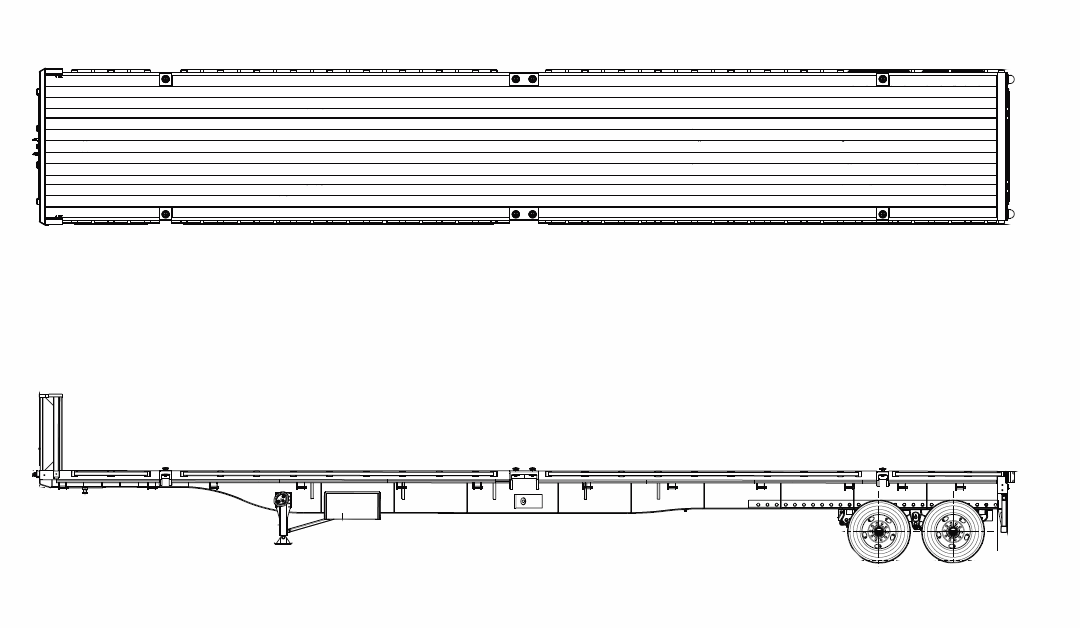

Flatbed Trailer
Model Number
GTFF402-53
Model Type
Regular
Capacity
40 Ton
Overall Length
636-inch
Overall Height w/Front Header
109-inch
Overall Width
102-inch
5th Wheel Height
Rear Deck Height
54-inch
Front Deck Height
59-inch
King Pin Setting
30-inch
Swing Clearance
68-inch
Axle Spacing
49-inch
No. of Axles
2
Main Beam Center
44-inch
Axle Track
77.5-inch
Cross Members
4-inch Jr. I-Beams on 12-inch Centers
Main Frame
Fabricated I-Beam
Side Rails
6-inch Structural Channel
Rear Cross Member
Structural channel full width with rubber dock bumpers
Stake Pockets
YES
Axles
25000 lbs
King Pin 5th Wheel
2-inch Heavy Duty
Tires
11R X 22.5 H
Wheels
Brakes
16 ½-inch X 7 Full Air Brakes
ABS
2S1M
Landing Gear
17-inch Travel, 2-Speed Landing Gear with 10-inch x 10-inch sand shoes
Suspension
Spring Ride Sliding Suspension
Lighting
Lighting LED in Rubber Grommet
Connector
7 way SAE connector
Tie Downs
NO
Winches and Webbings
YES
Container Locks
Eight (8) twist locks located on deck for two (2) 20’ ISO containers and one (1) 40’ ISO Container in the center
Front Header
48-inch Steel Header with 10-inch Wrap Around
Decking
Apitong Flooring
Finish
White Primed and Powder Coated Black
Options
"1. Step on rear bumper with non-skid surface 2. Hubometer on front axle driver side 3. Mudflaps 4. Rubber bumpers on rear"
