GTFF402-48

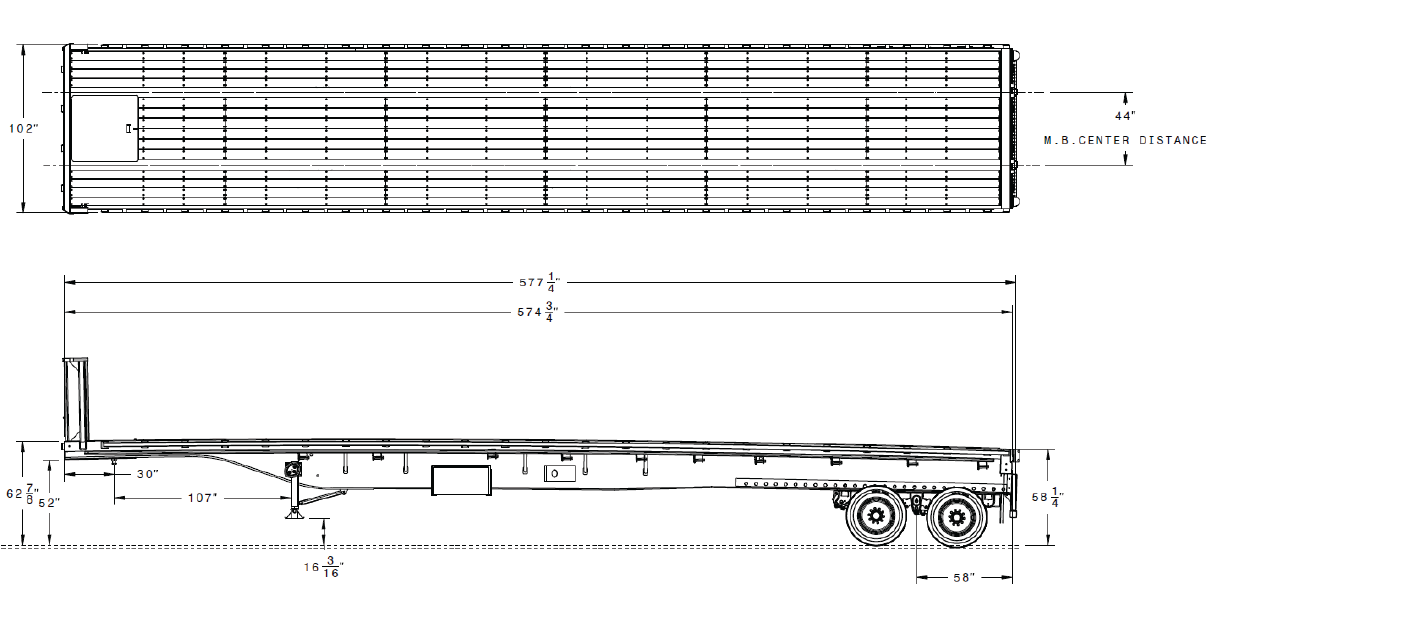

Parameters of Product

Flatbed Trailer

Model Number

GTFF402-48

Model Type

Regular

Capacity

40 Ton

Overall Length

576-inch

Overall Height w/Front Header

115-inch

Overall Width

102-inch

5th Wheel Height

52-inch

Rear Deck Height

58-inch

Front Deck Height

63-inch

King Pin Setting

30-inch

Swing Clearance

68-inch

Axle Spacing

58-inch

No. of Axles

Main Beam Center

44-inch

Axle Track

77.5-inch

Cross Members

4-inch Jr. I-Beams on 12-inch Centers

Main Frame

Fabricated I-Beam

Side Rails

6-inch Structural Channel

Rear Cross Member

Stake Pockets

YES

Axles

25000 lbs

King Pin 5th Wheel

2-inch Heavy Duty

Tires

295/75R 14

Wheels

Brakes

16 ½-inch X 7 Full Air Brakes

ABS

2S1M

Landing Gear

2-Speed Landing Gear

Suspension

Spring Ride Sliding Suspension

Lighting

Lighting LED in Rubber Grommet

Connector

7 way SAE connector

Tie Downs

Winches and Webbings

YES

Container Locks

Front Header

Head Rack Removable

Decking

Apitong Flooring

Finish

Sandblast & Powder Coat
