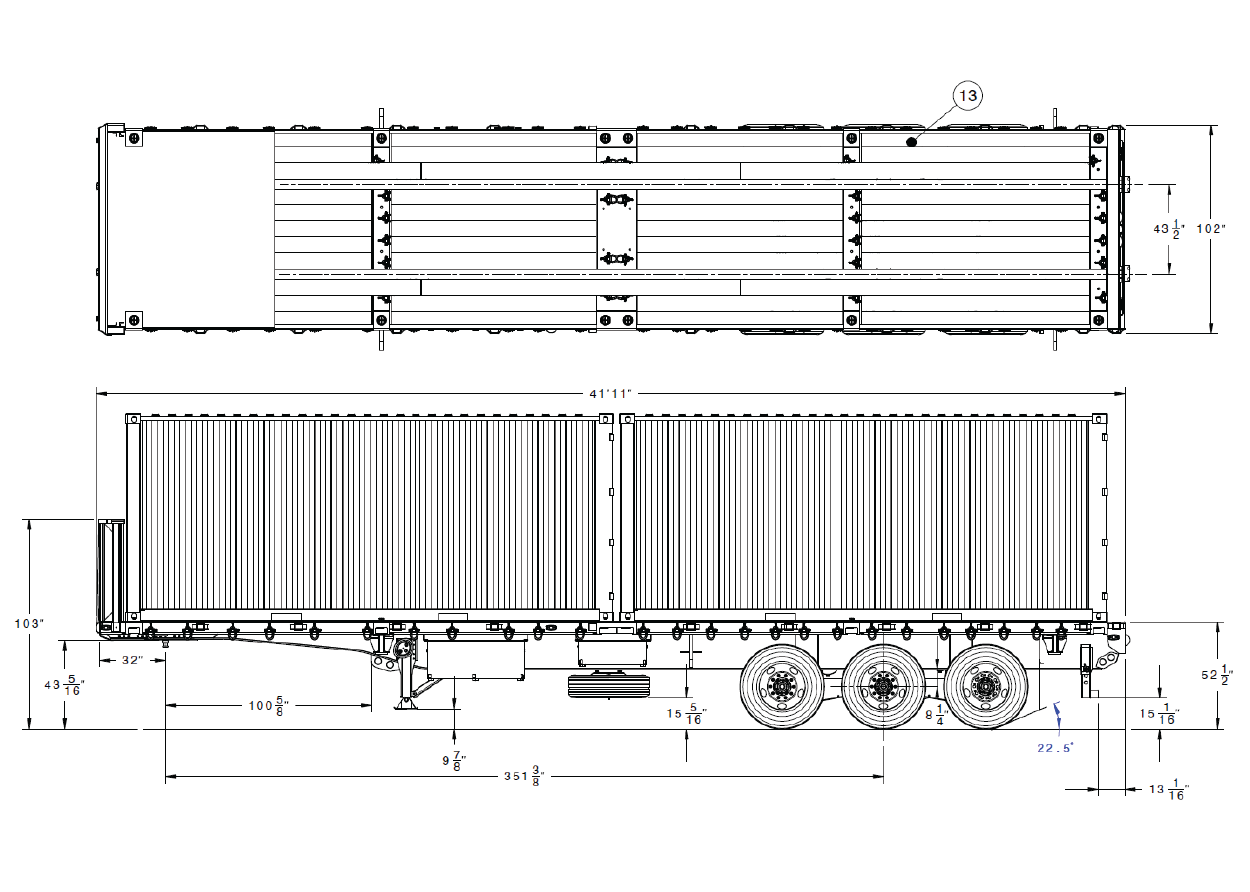

GTFF342-42
Parameters of Product
Flatbed Trailer
Model Number
GTFF342-42
Model Type
Special
Capacity
34 Ton
Overall Length
504-inch
Overall Height w/Front Header
106-inch
Overall Width
102-inch
5th Wheel Height
Rear Deck Height
52.5-inch
Front Deck Height
52.5-inch
King Pin Setting
36-inch
Swing Clearance
128-inch
Axle Spacing
50-inch
No. of Axles
Main Beam Center
43.625-inch
Axle Track
77.5-inch
Cross Members
4-inch Jr. I-Beams on 12-inch Centers
Main Frame
Fabricated I-Beam
Side Rails
6-inch Structural Channel
Rear Cross Member
Structural channel full width with rubber dock bumpers
Stake Pockets
YES
Axles
25000 lbs
King Pin 5th Wheel
2-inch Heavy Duty
Tires
11R X 22.5 H
Wheels
Brakes
16 ½-inch X 7 Full Air Brakes
ABS
4S2M
Landing Gear
17-inch Travel, 2-Speed Landing Gear with 10-inch x 10-inch sand shoes
Suspension
Tri-Axle Spring Ride Suspension
Lighting
Lighting LED in Rubber Grommet
Connector
7 way SAE connector
Tie Downs
YES
Winches and Webbings
NO
Container Locks
Eight (8) twist locks located on deck for two (2) 20’ ISO containers and one (1) 40’ ISO Container in the center
Front Header
Steel Bulkhead
Decking
Apitong Flooring
Finish
White Primed and Powder Coated Black
Options
1.Yellow side racks down curb side and rear of trailer. Rear rack shall have an opening ot access the rear of the trailer with a ladder. Ladder shall be removableand fit in stake pockets on the trailer. 2.Black mud flaps located behind rear axles. 3.Trailer is be equipped with Tie-Down & Sling provisions in accordance with MIL-STD-209 & MIL-STD-1366, all provisions are labeled accordingly. 4.Trailer conforms to MIL-STD-130 with identification plates showing specific UID markings. Plate includes contractor’s model number, registration number,trailer identification number, weight, date of mfg, & date of delivery. 5.Trailer is be equipped with instruction plates and diagrams describing procedures followed for operation, service, & lubrications affixed to the trailer usingscrews,bolts, rivets or military grade adhesive. 6.Trailer has a shipping plate with a silhouette showing the transport configuration, weight, center of gravity, location & capacity of the sling & tie-downprovisions. 7.Weld procedures & qualifications are in accordance with D1.1. 8.Manual with Operation, Maintenance Manual, Service Manual (Parts & Service Sections)
