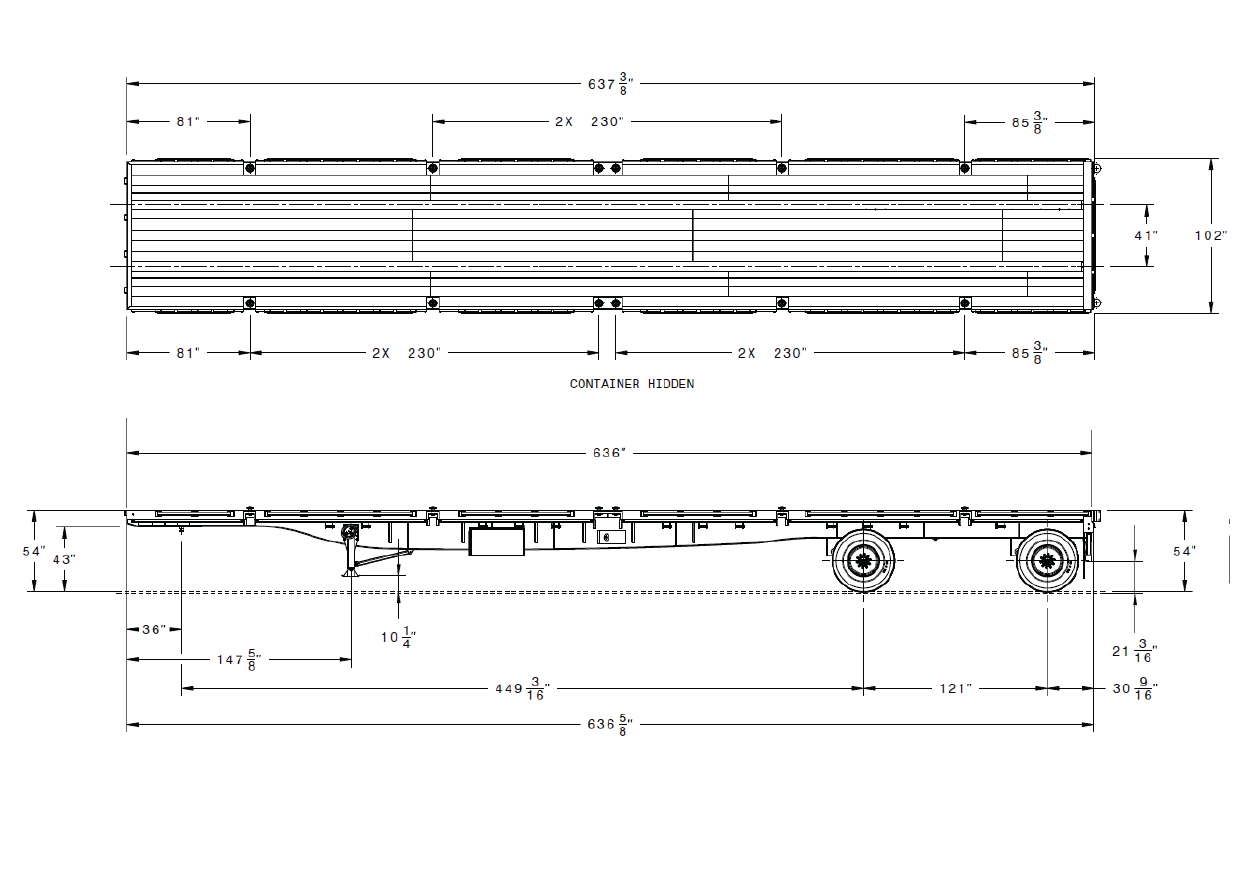

GTFF402-83

Parameters of Product

Flatbed Trailer

Model Number

GTFF402-83

Model Type

Regular

Capacity

40 Ton

Overall Length

637-inch

Overall Height w/Front Header

Overall Width

102-inch

5th Wheel Height

43-inch

Rear Deck Height

54-inch

Front Deck Height

54-inch

King Pin Setting

36-inch

Swing Clearance

68-inch

Axle Spacing

121-inch

No. of Axles

Main Beam Center

41-inch

Axle Track

77.5-inch

Cross Members

Main Frame

Fabricated I-Beam

Side Rails

6-inch Structural Channel

Rear Cross Member

Stake Pockets

YES

Axles

25000 lbs

King Pin 5th Wheel

2-inch Heavy Duty

Tires

11R X 22.5 H

Wheels

Brakes

16 ½-inch X 7 Full Air Brakes

ABS

2S1M

Landing Gear

2-Speed Landing Gear

Suspension

Tandem Air Ride Suspension

Lighting

Lighting LED in Rubber Grommet

Connector

7 way SAE connector

Tie Downs

Winches and Webbings

YES

Container Locks

Twist locks: 2 for 20’ Container, or 1 for 40’ container.

Front Header

Decking

Apitong Flooring

Finish

Sandblast & Powder Coat
