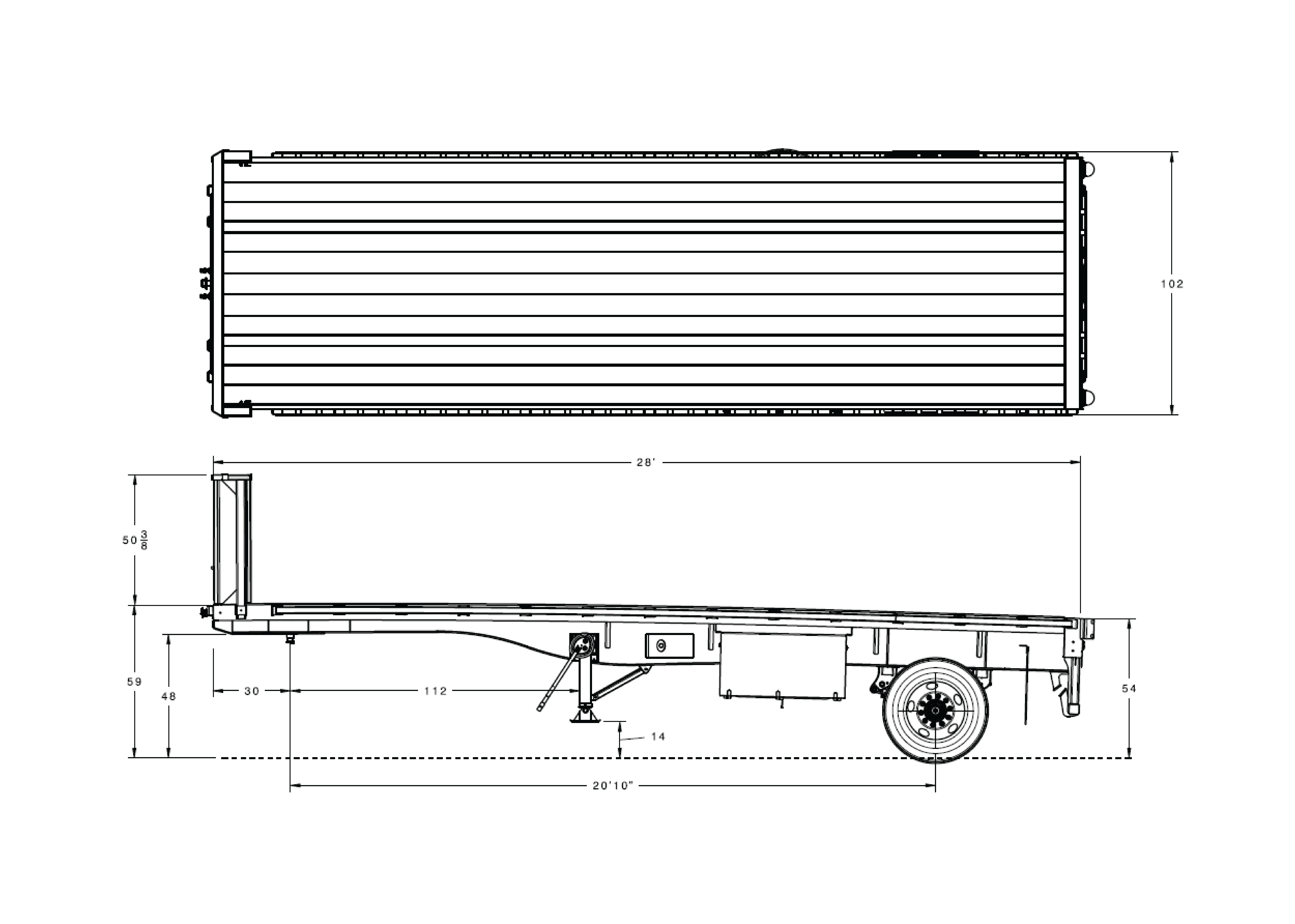

001046159

Parameters of Product

Flatbed Trailer

Model Number

001046159

Model Type

Capacity

10 Ton

Overall Length

336-inch

Overall Height w/Front Header

109.37-inch

Overall Width

102-inch

5th Wheel Height

48-inch

Rear Deck Height

54-inch

Front Deck Height

59-inch

King Pin Setting

30-inch

Swing Clearance

112-inch

Axle Spacing

No. of Axles

Main Beam Center

44-inch

Axle Track

71.5-inch

Cross Members

4-inch Jr. I-Beams on 8-inch Centers

Main Frame

Fabricated I-Beam

Side Rails

6-inch Structural Channel

Rear Cross Member

Stake Pockets

24-inch center, both sides, front & rear, with rubrails, with double pipe spools

Axles

25000 lbs

King Pin 5th Wheel

2-inch Heavy Duty 3/8-inch 5th Wheel Plate

Tires

295/75R X 22.5 H

Wheels

Hole-Hub Piloted Steel Disc Wheels

Brakes

16 ½-inch X 7-inch - 25K

ABS

2S1M

Landing Gear

2-Speed Landing Gear

Suspension

Spring Ride Suspension

Lighting

LED Plus 2 - Rear Strobes

Connector

7 way SAE connector

Tie Downs

Winches and Webbings

Container Locks

Front Header

Decking

Apitong Shiplap Flooring

Finish

Sandblast & Powder Coat
